Markov Chains

In many real-world models, we assume deterministic outcomes: once the input is known, the output can be computed exactly. However, many systems involve random variation. A stochastic model uses probability to describe and predict outcomes when randomness is present.
Markov chains are a specific class of stochastic models for systems that evolve over time, in which the future depends only on the present state.

To model a system over time, we consider a sequence of random variables \((X_0, X_1, X_2, \dots)\). Each variable \(X_n\) represents the state of the system at step \(n\). The defining feature of a Markov chain is that the probability of moving to a future state depends only on the current state, and not on the past history of the system.

Let \(E\) be a finite set \(\{e_1, e_2, \dots, e_k\}\) called the state space.
A sequence of random variables \((X_n)_{n \in \mathbb{N}}\) taking values in \(E\) is a Markov chain if, for all \(n \in \mathbb{N}\), for all indices \(i,j \in \{1,\dots,k\}\), and for all indices \(i_0,\dots,i_{n-1} \in \{1,\dots,k\}\) such that the conditioning event has positive probability,$$P\!\Bigl(X_{n+1}=e_j \,\Big|\, X_n=e_i,\; X_{n-1}=e_{i_{n-1}},\dots,\; X_0=e_{i_0}\Bigr)=P\!\Bigl(X_{n+1}=e_j \,\Big|\, X_n=e_i\Bigr).$$In this chapter, we consider time-homogeneous Markov chains, i.e.\ the conditional probability$$p_{ij}=P\!\bigl(X_{n+1}=e_j \mid X_n=e_i\bigr)$$does not depend on \(n\). The number \(p_{ij} \in [0, 1]\) is the transition probability from state \(e_i\) to state \(e_j\).

When a situation is described in everyday language, we build a Markov chain model by following these steps:

1. Identify the time steps. Decide what one step represents (one day, one week, one transaction, etc.).
2. Choose the states. List the possible situations the system can be in at each step (finite set \(E=\{e_1,\dots,e_k\}\)).
3. Index the states. Fix an order on \(E\) and associate each state with an index: $$ e_1 \leftrightarrow 1,\quad e_2 \leftrightarrow 2,\quad \dots,\quad e_k \leftrightarrow k. $$ This indexing will be used to build vectors and matrices.
4. Define the random variables. Introduce \((X_n)_{n\in\mathbb{N}}\) where \(X_n\) is the state at time \(n\), taking values in \(E\).
5. Translate the “memoryless” assumption. Express that the future depends only on the present: $$ P(X_{n+1}=e_j \mid X_n=e_i,\dots,X_0=e_{i_0})=P(X_{n+1}=e_j \mid X_n=e_i). $$
6. Extract transition probabilities. For each pair \((i,j)\), define $$ p_{ij}=P(X_{n+1}=e_j\mid X_n=e_i). $$

• Natural Language.
  Consider the weather in a city. Each day, the weather is either sunny or rainy. Suppose that:
  • if it is sunny today, then the probability that it rains tomorrow is \(0.2\);
  • if it is rainy today, then the probability that it is sunny tomorrow is \(0.4\).
  In both cases, these probabilities are assumed to be independent of the weather on previous days.
• Mathematical Formalism.
  We take one time step to be one day. We choose two states:$$e_1=S \quad (\text{Sunny}), \qquad e_2=R \quad (\text{Rainy}),$$so the state space is \(E=\{e_1,e_2\}=\{S,R\}\), with indexing$$S \leftrightarrow 1,\qquad R \leftrightarrow 2.$$We define \((X_n)_{n\in\mathbb{N}}\) by letting \(X_n\) be the weather on day \(n\), with values in \(E\). The phrase “independent of the weather on previous days” is modeled by the Markov property. The transition probabilities are then:$$p_{12}=P(X_{n+1}=e_2\mid X_n=e_1)=P(X_{n+1}=R\mid X_n=S)=0.2,$$$$p_{21}=P(X_{n+1}=e_1\mid X_n=e_2)=P(X_{n+1}=S\mid X_n=R)=0.4.$$Since the probabilities leaving a state sum to \(1\), we also obtain:$$p_{11}=1-p_{12}=0.8, \qquad p_{22}=1-p_{21}=0.6.$$Thus, all transition probabilities are$$p_{11}=0.8,\quad p_{12}=0.2,\quad p_{21}=0.4,\quad p_{22}=0.6.$$

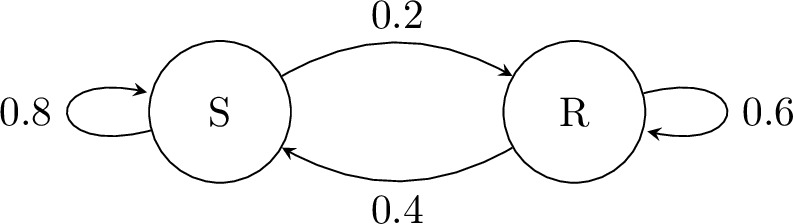

A Markov chain can be visualized using a probabilistic graph:

• Each node represents a state in \(E\).
• Each directed edge (arrow) from \(i\) to \(j\) represents the transition \(i \to j\).
• The weight on the edge is the probability \(p_{ij}\).
• Rule: The sum of probabilities on arrows leaving any node must be 1.

This probabilistic graph represents the transition structure of the Markov chain. For example, if the system is in state \(R\) (Rainy) today, then it moves to state \(S\) (Sunny) tomorrow with probability \(0.4\), and it remains in state \(R\) with probability \(0.6\).

To perform calculations, we associate each state with an index (typically \(1,2,\dots,k\)). This allows us to organize transition probabilities into vectors and matrices, and to use matrix multiplication to study the evolution of the system.

The probability distribution at step \(n\) is represented by a row vector \(\pi_n\):$$\pi_n = \begin{pmatrix} P(X_n = e_1) & P(X_n = e_2) & \dots & P(X_n = e_k) \end{pmatrix}.$$Each component is in \([0,1]\), and the sum of the components is always 1. The vector \(\pi_0\) is called the initial distribution.

The transition matrix \(\mathbf{M}\) is a square matrix whose entry \(m_{ij}\) in the \(i\)-th row and \(j\)-th column is:$$m_{ij} = P(X_{n+1} = e_j \mid X_n = e_i)=p_{ij}.$$Stochastic Matrix: In this curriculum, the sum of each row of \(\mathbf{M}\) is 1.

In a transition matrix \(\mathbf{M} = (m_{ij})\):

• The rows represent the current state (From).
• The columns represent the next state (To).
• The entry \(m_{ij}\) represents the probability of moving to state \(j\) starting from state \(i\).
• The sum of each row must be 1.

Let State 1 = Sunny (\(S\)) and State 2 = Rainy (\(R\)).

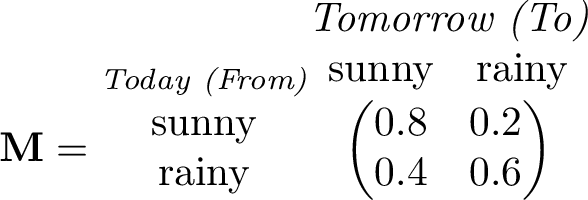

If today is definitely Sunny, the initial vector is \(\pi_0 = \begin{pmatrix} 1 & 0 \end{pmatrix}\).The matrix is:

Once the transition matrix is defined, we can compute the distribution of the system at any time \(n\) using matrix multiplication.

For a Markov chain with transition matrix \(\mathbf{M}\) and probability vector \(\pi_n\):$$\pi_{n+1} = \pi_n \mathbf{M}\quad \text{and, by induction,} \quad\pi_n = \pi_0 \mathbf{M}^n.$$

Let \(\mathbf{M}\) be the transition matrix of a Markov chain \((X_n)\).
The coefficient at the \(i\)-th row and \(j\)-th column of the matrix \(\mathbf{M}^n\), denoted \((\mathbf{M}^n)_{ij}\), is the probability of being in state \(j\) after \(n\) steps, given that the system started in state \(i\):$$ (\mathbf{M}^n)_{ij} = P(X_n = j \mid X_0 = i) $$

Today it is sunny. Find the probability that it will be sunny the day after tomorrow.

Over a long period, many Markov chains approach an equilibrium in which the distribution no longer changes from one step to the next. This limit distribution is called the steady state (or stationary distribution).

A probability vector \(\pi\) is a steady state (or stationary distribution) if:$$\pi \mathbf{M} = \pi.$$

To find \(\pi = \begin{pmatrix} x & y \end{pmatrix}\) for a 2-state matrix:

1. Solve the matrix equation \(\begin{pmatrix} x & y \end{pmatrix} \mathbf{M} = \begin{pmatrix} x & y \end{pmatrix}\).
2. This leads to a system of linear equations; one equation is redundant.
3. Add the normalization condition: \(x + y = 1\).

For \(M = \begin{pmatrix} 0.8 & 0.2 \\ 0.4 & 0.6 \end{pmatrix}\), solving \(\begin{cases}\pi \mathbf{M} = \pi\\x + y = 1\end{cases}\quad\text{with}\quad\pi=\begin{pmatrix} x & y \end{pmatrix}\) gives$$\begin{cases}\begin{pmatrix} x & y \end{pmatrix} \begin{pmatrix} 0.8 & 0.2 \\ 0.4 & 0.6 \end{pmatrix} = \begin{pmatrix} x & y \end{pmatrix}\\ x + y = 1\end{cases}\Leftrightarrow\begin{cases}0.8x + 0.4y = x \\ 0.2x + 0.6y = y \\ x + y = 1\end{cases}\Leftrightarrow\begin{cases}-0.2x+0.4y=0 \\ x + y = 1\end{cases}\Leftrightarrow\begin{cases}x = 2y \\ 3y = 1\end{cases}$$The steady state is$$\pi=\begin{pmatrix} \dfrac{2}{3} & \dfrac{1}{3} \end{pmatrix}.$$Interpretation: in the long run, the probability of being in state \(S\) (Sunny) is \(\dfrac{2}{3}\).
